As a typical traditional enterprise, how to get into cross-border is an urgent problem for the government and the wood industry to develop cross-border e-commerce
| | |
YYG-25-YYG-90
HUAKANG
Company: HUZHOU HUAKANG MOTOR CO LTD
Address: NO.1368-8 LIANYI ROAD, NANXUN ECONOMIC DEVELOPEMENT ZONE, HUZHOU CITY, ZHEJIANG PROVINCE, CHINA
Email: sallyhuakangmotor@hotmail.com
Tel: 008615868233860
whatsapp: 008615868233860
Business scope and advantages:
Washing machine Wash motor,Washing machine Spin motor,Automatic Washing machine motor,Household open door machine motor,Vegetable cut machine motor,Wet grinder motor, Small lifting motor for medical use, Arrange wire motor for spinning, Brushless frequency conversion motor, front loading washing machine series motor, Front loading washing machine Brushless frequency conversion motor and so on.
Spin motor
1) We are one of big manufacture for producing washing machine motor,wet grinder motor and air condition motor in huzhou,zhejiang. with 250 Worker,more than 28 years motor experience.
2)10000pcs per day production capacity,2 hours to shanghai Port port.3 hours to Ningbo port. Always force on delivery time and quality to get so many long-term cooperation customers.We hope can to be your one of partner to grow each other business together.
3) Safe and reliable, low noise, good starting, long life, etc.
4) Our products pass the CE/CCC/ ISO9001/TUV/BV/ IEI/ROHS
5) The motor can be designed and produced according to your request.
6) We will send you some samples for your further inspecting.
7) We have more detailed specifications.If you are interested in, please mail us.
Email: sally@huakangmotor.com
Website:
1.Features
Spin motor
Model Number: | YYG-25-90W | Output Power: | 25W-90W | Type: | Induction Motor,asynchronous motor | ||||||||
Frequency: | 50HZ /60HZ | Number of pole: | 4 pole | Protect Feature: | Explosion-proof | ||||||||
Phase: | Single-phase | Certification: | CE/CCC/IEI/ISO9001/TUV/BV/ROHS | Voltage: | 100-117V/ 220-240 V | ||||||||
Place of Origin: | Zhejiang China (Mainland) | Insulation Class: | B,E,F | rotation: | cw/ccw | ||||||||
MODEL | Rated Power | Voltage | Frequency | Start Torque | Maximum Torque | Efficiency | Capacitor | ||||||
(W) | (V) | (HZ) | (N.m) | (N.m) | (%) | (uF) | |||||||
25 | 25 | 220 | 50 | 0.3 | 0.5 | 27 | 3 | ||||||
30 | 30 | 220 | 50 | 0.35 | 0.55 | 30 | 3 | ||||||
45 | 45 | 220 | 50 | 0.4 | 0.6 | 34 | 4 | ||||||
60 | 60 | 220 | 50 | 0.5 | 0.7 | 38 | 5 | ||||||
70 | 70 | 220 | 50 | 0.6 | 0.8 | 40 | 6 | ||||||
80 | 80 | 220 | 50 | 0.56 | 0.9 | 40 | 7 | ||||||
90 | 90 | 220 | 50 | 0.8 | 1.2 | 42 | 8 | ||||||
• 2.Advantages
Spin motor
1) We are one of big manufacture for producing washing machine motor,wet grinder motor and air condition motor in huzhou,zhejiang. with 250 Worker,more than 28 years motor experience.
2)10000pcs per day production capacity,2 hours to shanghai Port port.3 hours to Ningbo port. Always force on delivery time and quality to get so many long-term cooperation customers.We hope can to be your one of partner to grow each other business together.
3) Safe and reliable, low noise, good starting, long life, etc.
4) Our products pass the CE/CCC/ ISO9001/TUV/BV/ IEI/ROHS
5) The motor can be designed and produced according to your request.
6) We will send you some samples for your further inspecting.
7) We have more detailed specifications.If you are interested in, please mail us.
Email: sally@huakangmotor.com
Website:www.huakangmotor.com
• 3.More detail

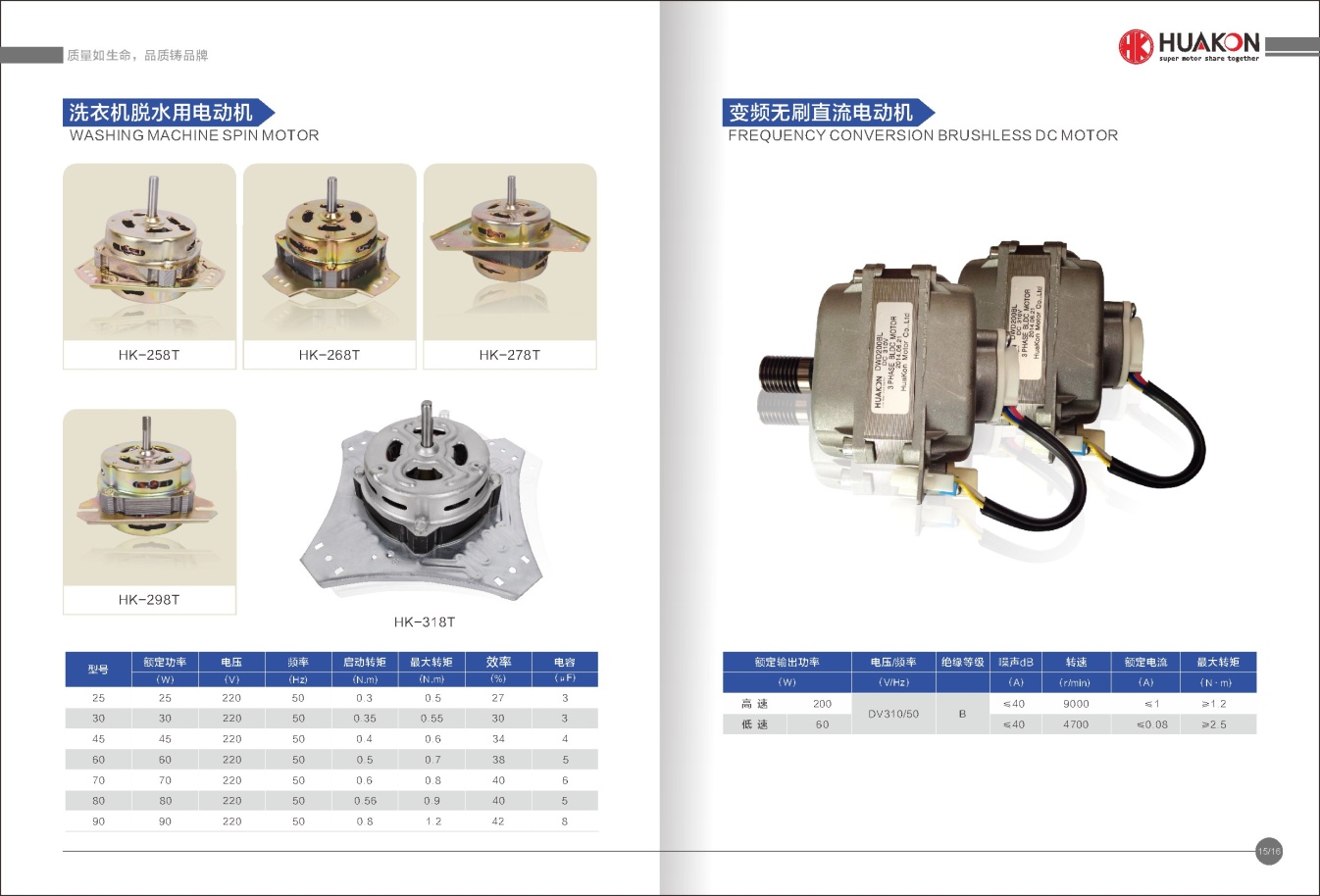

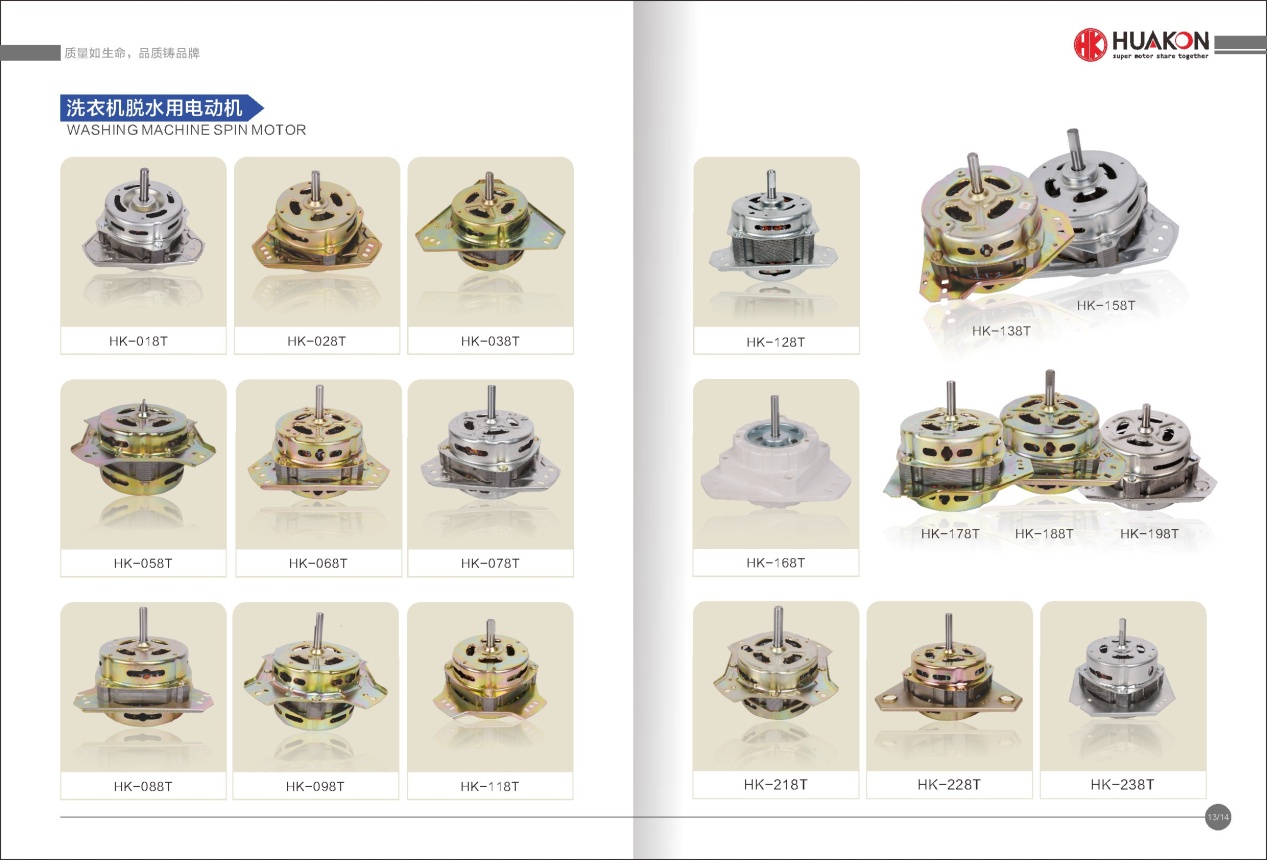

washing machine spin motor
More Specifications: | ||
Product Name | Spin motor | |
Voltage | 100V, 110V, 127V, 220V, 230V, 240V, 220-240V | |
Frequency | 50Hz, 60Hz, 50/60Hz | |
Power | 25-90W | |
Material | Stator lamination: Silicon steel Q195 | |
Rotor lamination: Silicon steel Q195 | ||
Rotor end ring: primary ingot | ||
Shaft: Steel #45 C D: Φ10 or Φ12 | ||
Cover(top/bottom): galvanized steel or aluminium | ||
Winding: Enamelled round copper/aluminium/copper clad aluminium wire | ||
Insulation class | Class B. Class E or Class F | |
Pole | 2poles 4 pole or 6 pole | |
Bearing type | Oil impregnate Bush bearing or ball bearing based on customer’s request | |
Noise | <55db | |
Delivery Detail: | 15-20 days | <55db |

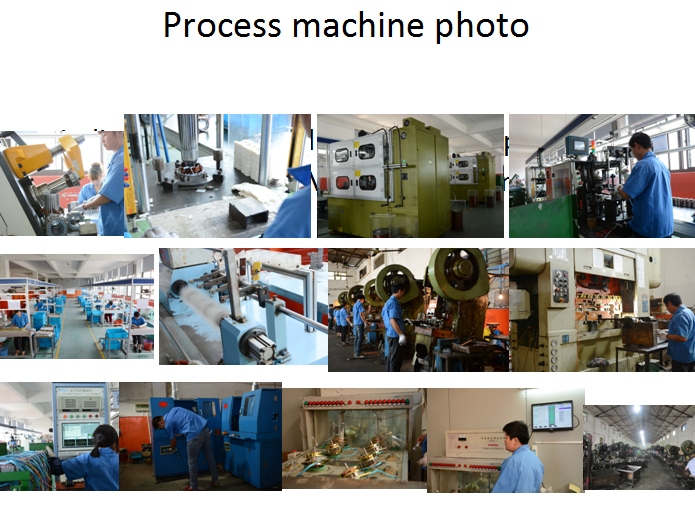

4.The processing of producing motors

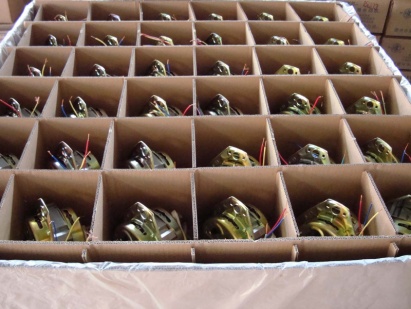

5. Packing detail
4 pcs one carton with foam
one container (20GP)containing 5000-6000pcs
One pallet 294 pcs for spin motor.
One pallet 216 pcs for wash motor.
One container (20GP)containing 20 pallets
Can be customized according to customer’s requirement packaging.
6. Why choose us
1) Safe and reliable, low noise, good starting, long life, etc.
2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV
3) This motor can be designed and produced according to your request.
4) We will send you some samples for your further inspecting.
5) We have more detailed specifications.If you are interested in, please mail u
Email: sally@huakangmotor.com
Website:www.huakangmotor.com
7.Certification
Company: HUZHOU HUAKANG MOTOR CO LTD
Address: NO.1368-8 LIANYI ROAD, NANXUN ECONOMIC DEVELOPEMENT ZONE, HUZHOU CITY, ZHEJIANG PROVINCE, CHINA
Email: sallyhuakangmotor@hotmail.com
Tel: 008615868233860
whatsapp: 008615868233860
Business scope and advantages:
Washing machine Wash motor,Washing machine Spin motor,Automatic Washing machine motor,Household open door machine motor,Vegetable cut machine motor,Wet grinder motor, Small lifting motor for medical use, Arrange wire motor for spinning, Brushless frequency conversion motor, front loading washing machine series motor, Front loading washing machine Brushless frequency conversion motor and so on.
Spin motor
1) We are one of big manufacture for producing washing machine motor,wet grinder motor and air condition motor in huzhou,zhejiang. with 250 Worker,more than 28 years motor experience.
2)10000pcs per day production capacity,2 hours to shanghai Port port.3 hours to Ningbo port. Always force on delivery time and quality to get so many long-term cooperation customers.We hope can to be your one of partner to grow each other business together.
3) Safe and reliable, low noise, good starting, long life, etc.
4) Our products pass the CE/CCC/ ISO9001/TUV/BV/ IEI/ROHS
5) The motor can be designed and produced according to your request.
6) We will send you some samples for your further inspecting.
7) We have more detailed specifications.If you are interested in, please mail us.
Email: sally@huakangmotor.com
Website:
1.Features
Spin motor
Model Number: | YYG-25-90W | Output Power: | 25W-90W | Type: | Induction Motor,asynchronous motor | ||||||||
Frequency: | 50HZ /60HZ | Number of pole: | 4 pole | Protect Feature: | Explosion-proof | ||||||||
Phase: | Single-phase | Certification: | CE/CCC/IEI/ISO9001/TUV/BV/ROHS | Voltage: | 100-117V/ 220-240 V | ||||||||
Place of Origin: | Zhejiang China (Mainland) | Insulation Class: | B,E,F | rotation: | cw/ccw | ||||||||
MODEL | Rated Power | Voltage | Frequency | Start Torque | Maximum Torque | Efficiency | Capacitor | ||||||
(W) | (V) | (HZ) | (N.m) | (N.m) | (%) | (uF) | |||||||
25 | 25 | 220 | 50 | 0.3 | 0.5 | 27 | 3 | ||||||
30 | 30 | 220 | 50 | 0.35 | 0.55 | 30 | 3 | ||||||
45 | 45 | 220 | 50 | 0.4 | 0.6 | 34 | 4 | ||||||
60 | 60 | 220 | 50 | 0.5 | 0.7 | 38 | 5 | ||||||
70 | 70 | 220 | 50 | 0.6 | 0.8 | 40 | 6 | ||||||
80 | 80 | 220 | 50 | 0.56 | 0.9 | 40 | 7 | ||||||
90 | 90 | 220 | 50 | 0.8 | 1.2 | 42 | 8 | ||||||
• 2.Advantages
Spin motor
1) We are one of big manufacture for producing washing machine motor,wet grinder motor and air condition motor in huzhou,zhejiang. with 250 Worker,more than 28 years motor experience.
2)10000pcs per day production capacity,2 hours to shanghai Port port.3 hours to Ningbo port. Always force on delivery time and quality to get so many long-term cooperation customers.We hope can to be your one of partner to grow each other business together.
3) Safe and reliable, low noise, good starting, long life, etc.
4) Our products pass the CE/CCC/ ISO9001/TUV/BV/ IEI/ROHS
5) The motor can be designed and produced according to your request.
6) We will send you some samples for your further inspecting.
7) We have more detailed specifications.If you are interested in, please mail us.
Email: sally@huakangmotor.com
Website:www.huakangmotor.com
• 3.More detail
washing machine spin motor
More Specifications: | ||
Product Name | Spin motor | |
Voltage | 100V, 110V, 127V, 220V, 230V, 240V, 220-240V | |
Frequency | 50Hz, 60Hz, 50/60Hz | |
Power | 25-90W | |
Material | Stator lamination: Silicon steel Q195 | |
Rotor lamination: Silicon steel Q195 | ||
Rotor end ring: primary ingot | ||
Shaft: Steel #45 C D: Φ10 or Φ12 | ||
Cover(top/bottom): galvanized steel or aluminium | ||
Winding: Enamelled round copper/aluminium/copper clad aluminium wire | ||
Insulation class | Class B. Class E or Class F | |
Pole | 2poles 4 pole or 6 pole | |
Bearing type | Oil impregnate Bush bearing or ball bearing based on customer’s request | |
Noise | <55db | |
Delivery Detail: | 15-20 days | <55db |
4.The processing of producing motors
5. Packing detail
4 pcs one carton with foam
one container (20GP)containing 5000-6000pcs
One pallet 294 pcs for spin motor.
One pallet 216 pcs for wash motor.
One container (20GP)containing 20 pallets
Can be customized according to customer’s requirement packaging.
6. Why choose us
1) Safe and reliable, low noise, good starting, long life, etc.
2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV
3) This motor can be designed and produced according to your request.
4) We will send you some samples for your further inspecting.
5) We have more detailed specifications.If you are interested in, please mail u
Email: sally@huakangmotor.com
Website:www.huakangmotor.com
7.Certification
